Blink-500-Pro-TX

MFR #Blink500 Pro TX BLK #478-0054

Quick Overview

Wireless Audio Transmitter
1x Transmitters w Bult-in Mic
1x Lavalier Microphone
Charging station
Frequency: 50-18kHz
Internal battery - 8hours
USB charging
High Quality

Blink-500-Pro-TX

The Saramonic Blink500 Pro system are incredibly lightweight, ultracompact and easy-to-use wireless microphone system for up to 2 people. The microphone delivers exceptional, broadcast-quality sound to DSLR, Mirrorless and Video cameras, Smartphones, Tablets, Computers, and more.

The transmitters and receiver deliver a remarkable 8-hours of run time on a single charge and feature quick charging. The supplied charging case allows you to charge the transmitters and receivers anywhere and can be recharged or powered via the USB-C DC 5v port using USB-A chargers and battery packs.

The Blink 500 Pro RX receiver has a vivid OLED display and a 3.5mm output. It also includes both TRS and TRRS output cables, allowing it to work with cameras, mobile devices, computers and any device with a 3.5mm audio input. The receivers feature a 3.5mm headphone output for real-time monitoring and selectable Mono/Stereo switch. Making the Blink 500 Pro meet the demands of professional users.

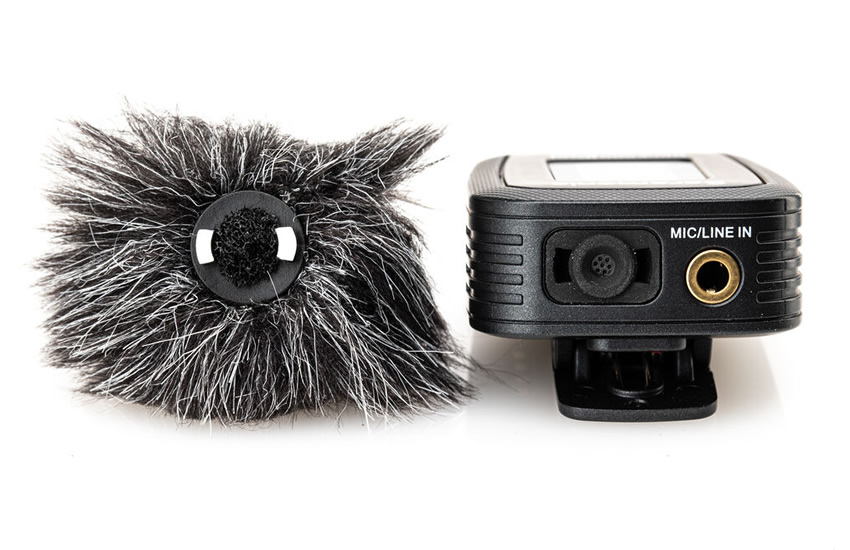

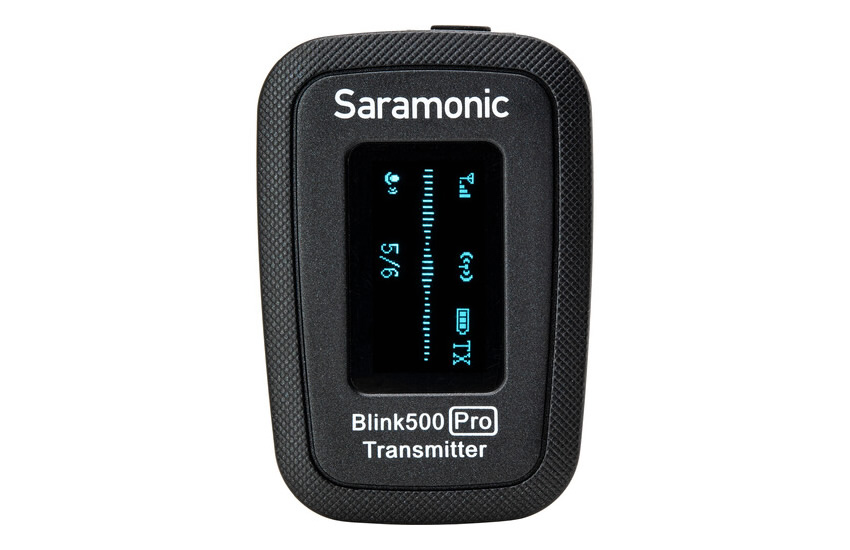

The Blink 500 Pro TX clip-on transmitter has a great sounding built-in omnidirectional microphone and it is small and light enough to clip to shirts and clothing, or you can use it as a traditional belt pack transmitter with the included SR-M1 professional lavalier microphone. It features a vivid OLED display and has 3.5mm input for microphones and line-level inputs.

Dual-channel stereo receiver for cameras and mobile devices
Portable charging case for the transmitter and receiver
Vivid OLED display on both transmitter and receiver
Selectable Mono/Stereo output mode
Real time headphone monitor
Mic input and Line input
8 hours battery life on one single charge
One button easy paring
Lavalier microphone, windscreen and deadcat included in the package

Blink500 Pro RX
Transmission Type: 2.4GHz Digital Frequency
Modulation: GFSK
Operating Range: Up to 328′(100m)
Audio Output Connector: 3.5mm jack
Audio Output level: –60 dBV to -20dBV
Power Requirements: Built-in Li-ion Battery or
Micro USB DC 5V or Charging Contact
Headphone jack: 3.5mm
Built-In Battery Life: Approx.8 hours
Antenna: PIFA Antenna
Weight: Approx. 32g(1.13oz)
Dimensions: 56×38×29.4mm
Operating Temperature: 0℃ to 50℃
Storage Temperature: -20℃ to +55℃

Blink500 Pro TX
Transmission Type: 2.4GHz Digital Frequency
Modulation: GFSK
Operating Range: Up to 328′(100m)
RF Output Power: 10mW
Polar Pattern: Omnidirectional
Frequency Response: 50Hz-18KHz
Maximum SPL: Built-in Microphone:120dB SPL
Lavalier Microphone: 110dB SPL
Sensitivity: Built-in Microphone: -39dB
Lavalier Microphone: -39dB
SNR: ＞78dB
Reference audio input level: -30～42dBv MIC input,0 dB attenuation
Power Requirements: Built-in Li-ion Battery or
Micro USB DC 5V or Charging Contact
Built-in Battery Life: Approx.8 hours
Antenna: PIFA Antenna
Audio Inputs: 3.5mm TRS Lavalier Mic/Line
– in Input or Built – in Microphone

Weight: Approx. 32g(1.13oz)
Dimensions: 56.5×38×26.1mm
Operating Temperature: 0℃ to 50℃
Storage Temperature: -20℃ to +55℃
Blink500 Pro Charging Case
Power Requirements Powered by USB-C port (5V/1.5A)
Power Capacity 2000mAh
Charging Time 4 hours
Weight 268g (9.45 oz)
Dimensions 165.8×102.9×39.7 mm
Operating Temperature 0°C to 50°C
Storage Temperature –20°C to +55°C

Blink-500-Pro-TX

STATUS

Status

New

Type of Wireless

Wireless Audio Transmitter

OPTIONS-SXETIKA

Options

TRS 2TX

TRANSMITTER FEATURES

Audio inputs (Transmitter)

Jack 3.5mm MIC/LINE x1

PC Connections (Transmitter)

Micro-USB

Transmitter Mount

Belt clip

Dimensions(Transmitter)

166×103×40mm

Weight(Transmitter)

0.268KG

Power (Transmitter)

Internal battery 8hours- USB connection

MICROPHONE FEATURES

Microphone Type

Lavalier

Transducer Principle

Condenser

Polar Pattern

Omni-Directional

Mic Frequency Response

50Hz - 18kHz

Mic Max SPL (dB)

110.0

120.0

Sensitivity (dB)

-39.0
